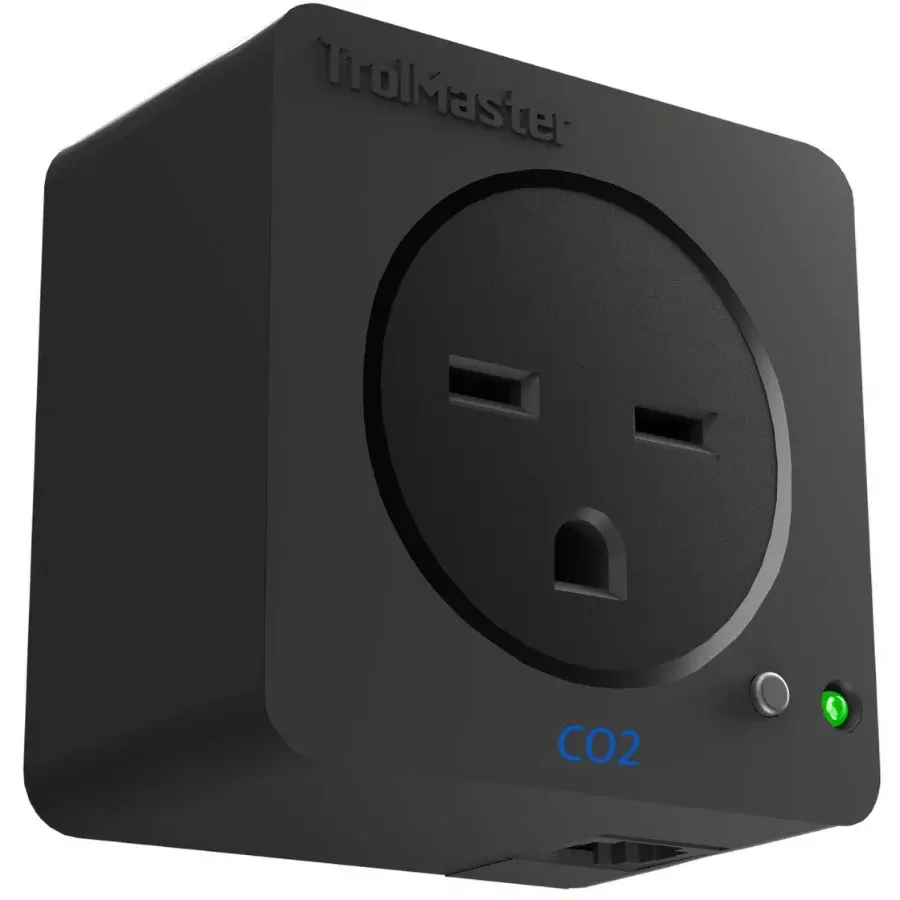

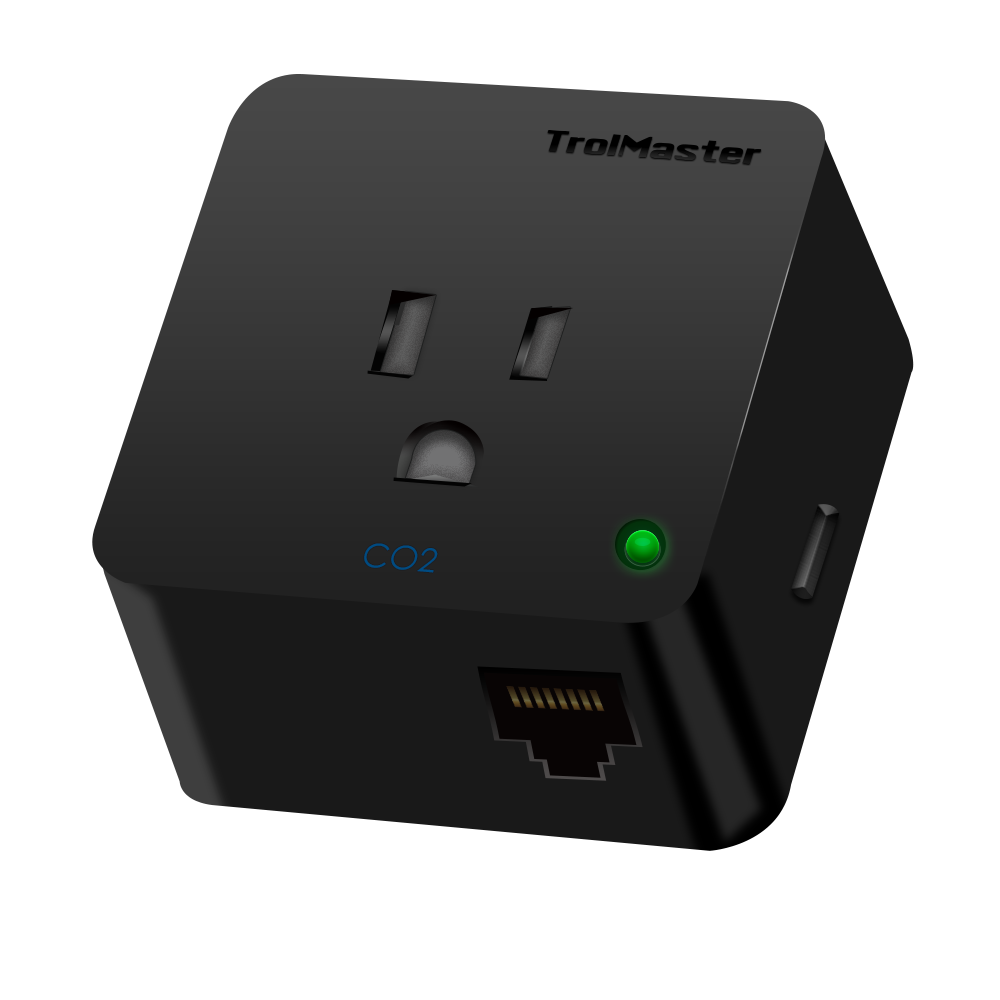

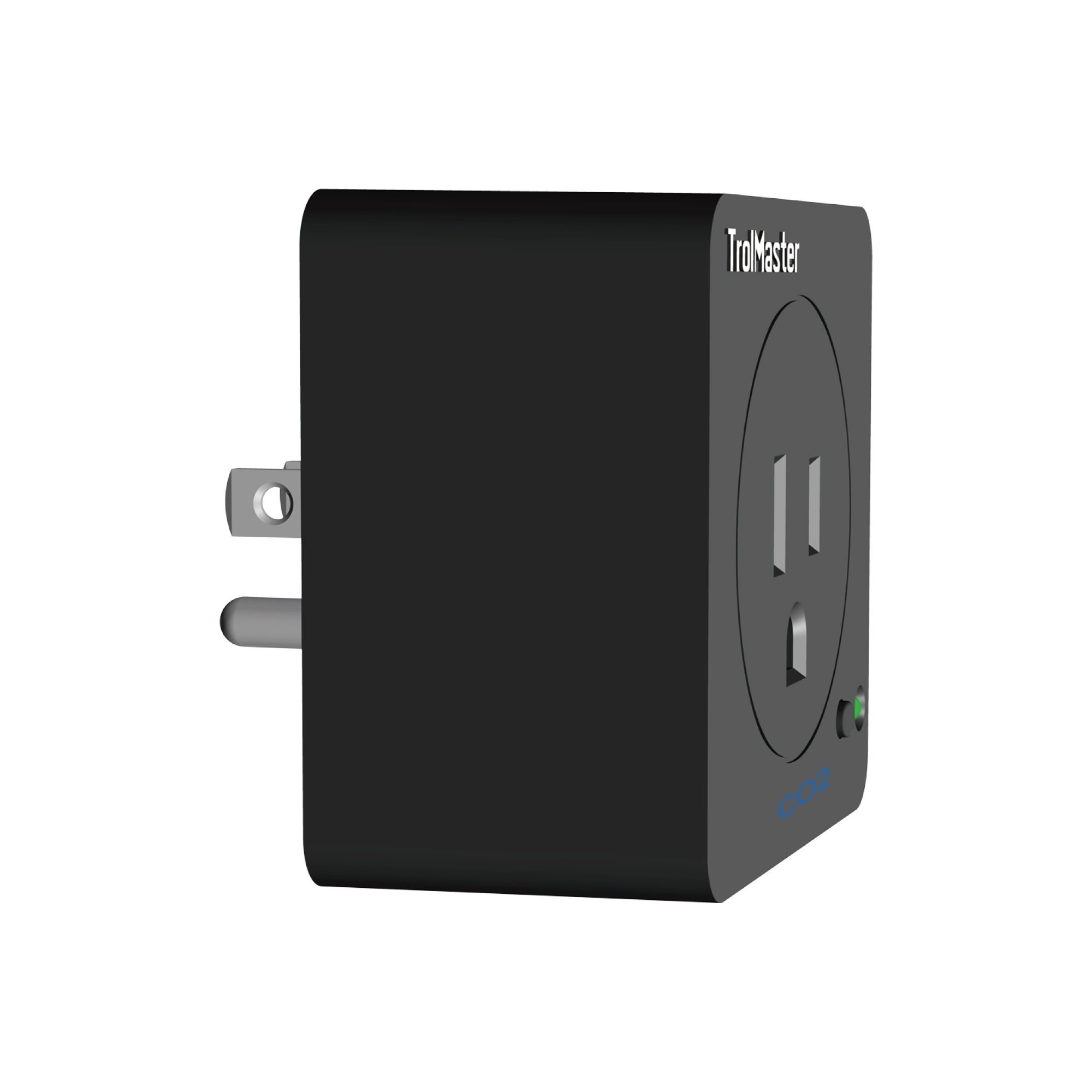

The TrolMaster DSC-2 CO2 control/device module allow the user to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. This module allows control of any CO2 device under the 240 VAC, 50/60 Hz standard, up to 10-amps.
LED status:
- Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller.
Pressing the small button on the module will address/link the module when first installed. - Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
- SOLID green: If you see the LED is on solid (no blinking) that means the module is addressed, connected and currently turned ON.
- Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
*By pressing and holding the button on the DSC-2, users can manually override the module and turn it ON / OFF.
